The trailer is a partial discharge locator system which can be temporarily set up to monitor all the surrounding bays within a substation. Using similar Elimpus technology the trailer is capable of detecting and locating partial discharges. Their location is then transmitted through a wireless connection to our server where it is displayed through our website in conjunction with trending and magnitude characteristics.

Partial discharges are known to fluctuate in density under various environmental and load conditions. The trailer system allows these fluctuations to be monitored and recorded without the need to connect to the plant under inspection. It is also an easily deployable early warning system during any maintenance work.

The fixed system is permanently installed on your site and is capable of monitoring your whole substation 24/7/365.

This system is capable of monitoring and locating partial discharges throughout the substation. It has been proven to detect PD 150 metres away to within a 0.5 m accuracy.

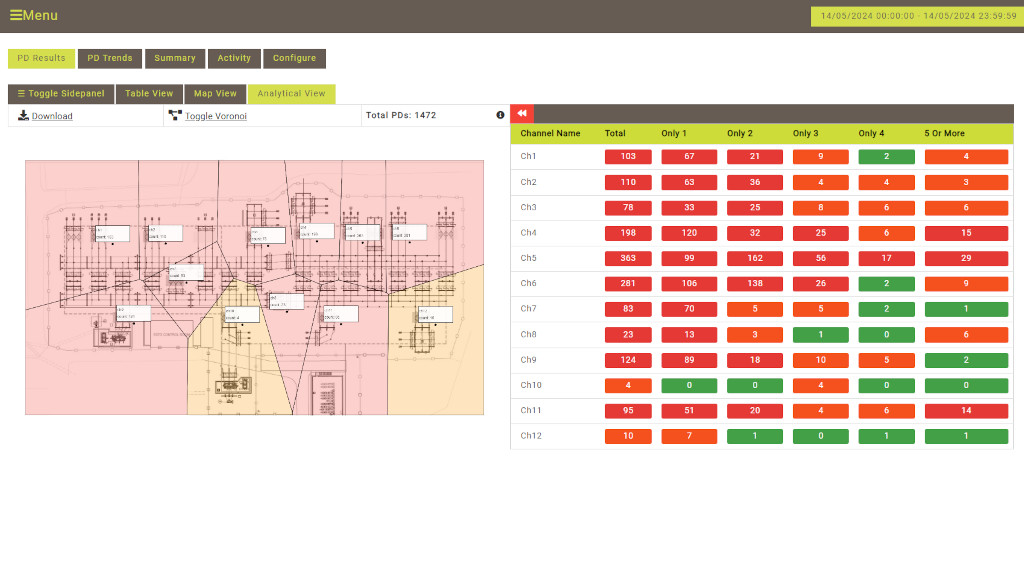

Our innovative, dynamic, web portal features quasi real-time data-analysis and reporting from remote sites, providing secure access to the interpreted information and reporting history from all monitoring stations and RF surveys. The web portal is available 24/7/365 from anywhere in the world and with no IT installation overhead.

Our technology is capable of communication with remote sites either through the public IP network (internet) or wirelessly, over the GSM / UMTS network. The latter allows our system to be completely self-contained, with no installation overhead.

Our Alerting plugin allows you to recieve instant Email and SMS alerts when a problem occurs onsite. All settings relating to alerting are fully user-configurable.
